Balisongs
/ Butterfly Knives
|
| The
balisong, also known as a butterfly knife, combines the strength
of a fixed blade with the practicality of a folding knife. Click
on the thumbnail for a larger image. |
|
|
|
|
|
The
Ring Fighter Balisong
|
|
|
"Original Ring Fighter" |
|
|
|
|
The original
run of 20 "Ring Fighter" balisongs made in 2005
was sold through EDCKnives
and is currently sold out. The first 20 had 4 5/8"
S30V deep belly blade with sharpened swedge and maroon
micata handles. O.A.L. is 10 1/2".
There is left over water jet cut parts (blade and handles)
That will be done periodically with various modifications
from the original 20. The Ring Fighter is one of my best
and most original designs to date. I hope this knife will
remain popular and I can continue to build this knife
though out my career. |
#011 & #012
Blade:
4 5/8" x 3/16" D2 steel, handle: 5
1/4" Stainless Steel with Giraffe Bone
inlays.
O.A.L.: 9 7/8" Weight: 7.5 oz.
Titanium tang pins.
|
#014
Non-tang
pin. Blade: 3 1/2" x 3/16" Ats-34
weehawk (my version) mirror finish bevels, satin
flats. Handle: 4 1/2" 304 ss satin finished,
milled bolsters and stag scales. Stainless Steel
latch, screws and spacers.
|
| |
|
|
|
#015
Blade:
3.5" x 5/32 Ats-34 Warncliffe. Handle:
4.4" 304 Stainless Steel, Ebony Wood inlays.
O.A.L. 7.9" Non-tang pin construction,
Rare Earth magnetic latch.
|
#020
Latchless, handles with indexing grooves.
O.A.L. 8 1/8" Blade 3 3/4" X 5/32"
ATS-34,
satin finish, Thumb ramp Kydex neck/pocket sheath |
|
|
#021
4 5/8" blade 10 1/8" O.A.L.
weight 8 oz. Spring Latch, Kingwood inlays.
|
#22
Blade: 5" ATS-34 O.A.L. 11 1/2"
Anodized titanium handles with snakewood overlays.
New type magnetic latch.
Customer design, completed Oct. 5, 2005
|
|
|
#023
4 1/8" 154 CM blade 316 SS handles
9 1/2" O.A.L. non-tang design
photo by: Duane Weikum
|

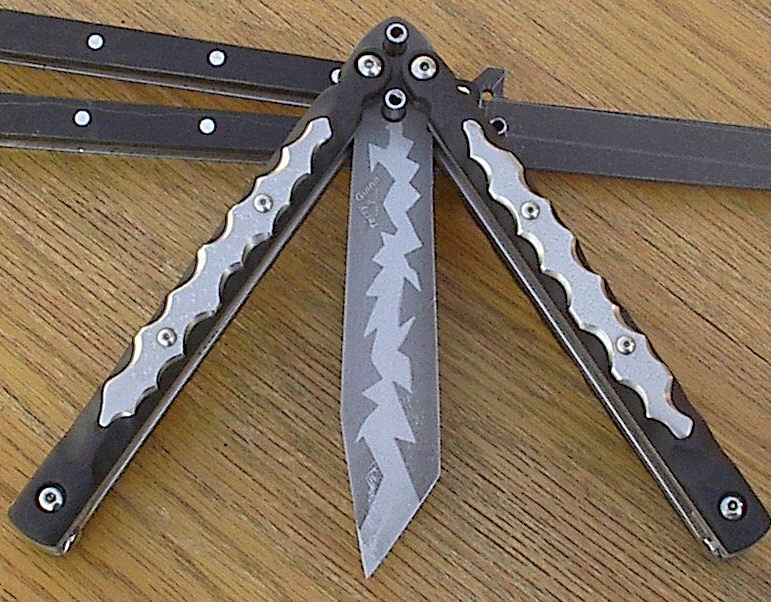

#024
Blade:
4 1/4" acid finish with bead blast design
ATS-34. Handles: stainless steel, G-10 with
stainless overlays, heavily textured.
Magnetic
latch 9 1/2" O.A.L.
|
|
|
|
|
#025
4
1/4" Chisel ground,mirror finished bevels,
satin flats, ATS-34 blade. Stainless steel handles
with bolsters and Mastodon Ivory scales.
Magnetic Latch. 9 1/2" O.A.L. |
#026 & 27
Mirror
finished ATS34 knife & fork set.Two color,
ladder pattern mokume, by Mike Sakmar, over
stainless steel handles. Non-tang design and
magnetic latch.
photo by: Ryan Peterson
|
|
|
#028
Blade: 4 1/2" 154 CM
Handles: 5 3/8" 316 ss O.A.L. 9 7/8"
Mastodon inlays, Magnetic Latch
May 2006 |
#029
Blade: 4 1/2" 154CM
Handles: 5 5/8" 316 ss O.A.L. 10 1/8"
Stone inlays, Latch
May 2006 |
|
|
#30
Blade: 5.060" Devin Thomas Ladder Damascus
Handles: 6" Mike Sakmar 3 color Wavy Ladder Mokeme
by Abbot Genser
|
#31 &
#32
Zenghost Design Sept. 2006
Kola wood & Carbon Fiber |
|
|
#33 & #34
3" blades Oct. 2006
|
|
Spring Latch
|
|
#35 balisong-ax
Built to customer specifications. Stainless Steel Damascus
by Gerome Weinand.
Blade: 5 3/8" from tang pin, 7 3/8" O.A.L. Handles:
heat treated 440-C with pink ivory scales & dovetailed
raindrop bolsters. Long handle, 8 1/8" short handle,
7 1/4" Spring Latch. Completed November 11, 2006
|
#36 Customer Design
Blade: Devin Thomas Ladder Damascus 5 3/4" from handles, 1
7/16" wide.
Handles: Timascus 7" long, O.A.L. 12 3/4" Weight: 8 oz.
Magnetic latch in closed position. Outline of knife is symmetrical
in closed position. Completed in February, 2007

Open and closed photo by Ryan Peterson.
Prototypes April 2007
Scimitar type blade has textured carbon fiber handles,
with removable magnetic latch.
Sheepfoot blade has G-10 handles.
|
1st. IKBS Prototype
3 1/8" CMP154 blade Titanium Handles 7 5/8" O.A.L.
Removable magnetic latch. April 2007
|
#037
3 1/2" CMP154 blade, Titanium handles, 7 3/4"
O.A.L.
magnetic latch
#040
Blade 5 3/4" Odin's Eye Damasteel.
Textured titanium handles 12 1/2" O.A.L.
IKBS pivots. Sept. 2007
#042
Jon Kim Design
CMP154 blade, Titanium & textured G-10 handles.
magnetic latch. Nov. 2007
#044 & #045
Blades: 3 3/4" 154CM O.A.L. 8 1/2"
Stainless Steel Hanldes, IKBS
#044 Tiger stripe G-10, 7.9 oz.
#045 Natural Micata, 6.9 oz.
January 15, 2008

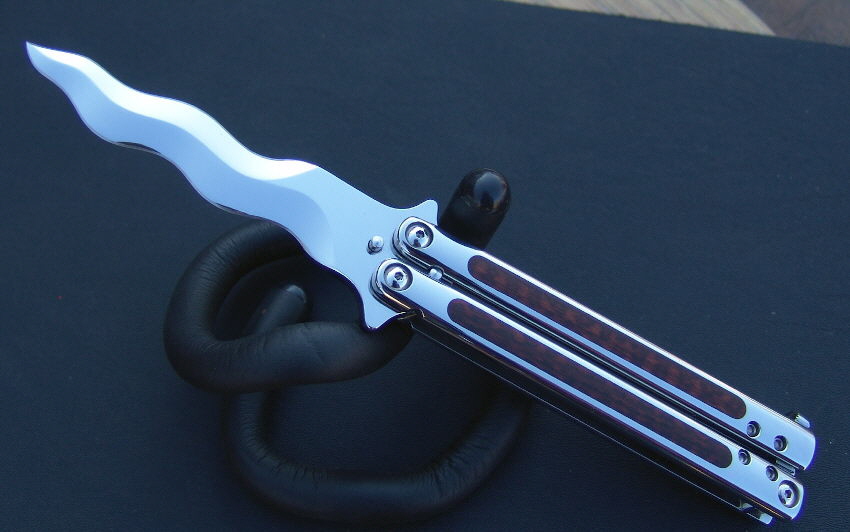

#047
Blade: 4" CMP154 "Kriss"
Handles: Stainless Steel with Snakewood inlays
IKBS & spring latch February 25, 2008
#050
Blade: 5 1/8" acid etched D-2
Solid carbon fiber handles, 11 3/8" O.A.L. magnetic latch.
June, 2008
#053
Blade: 4 5/8" CMP154
Titanium liners, SS bolsters, stag scales. 10" O.A.L.
IKBS, Latchless, 7.37 oz. Sept. 2008
|
#038 & #039
Mirror finished CMP154 blade/fork
titanium handles, magnetic latch
Sept. 2007
#041
Jon Kim Design
Blade: 5 1/4" CMP154
Titanium liners, Carbon fiber scales & Stainless Steel
Bolsters. 11 1/2" O.A.L. IKBS Nov. 2007
#043
Blade: 4 1/4" 154CM Stainless Steel handles with
maroon micata overlays. IKBS Nov. 2007
#046 "Tuan Design"
Blade: 3 1/16" D-2 steel.
Handles: Damascus/Titanium, O.A.L. 7 1/4"
February 10, 2008
#049
Blade 3 3/4" 154CM O.A.L. 8 1/2"
Stainless Steel Handles, IKBS, Blue/Black G-10 overlays.
Special message, Hebrews 4:12 engraved on handle edge.
June 2008
#052
Blade: 5 1/4" CMP154
Titanium liners, SS bolsters, micata scales. 11 3/8"
O.A.L
IKBS, Latchless 7.3 oz . Aug. 2008
|
| |
|
| |
|
